Part Number: 17E589
Category: Graco
Availability: Unlimited

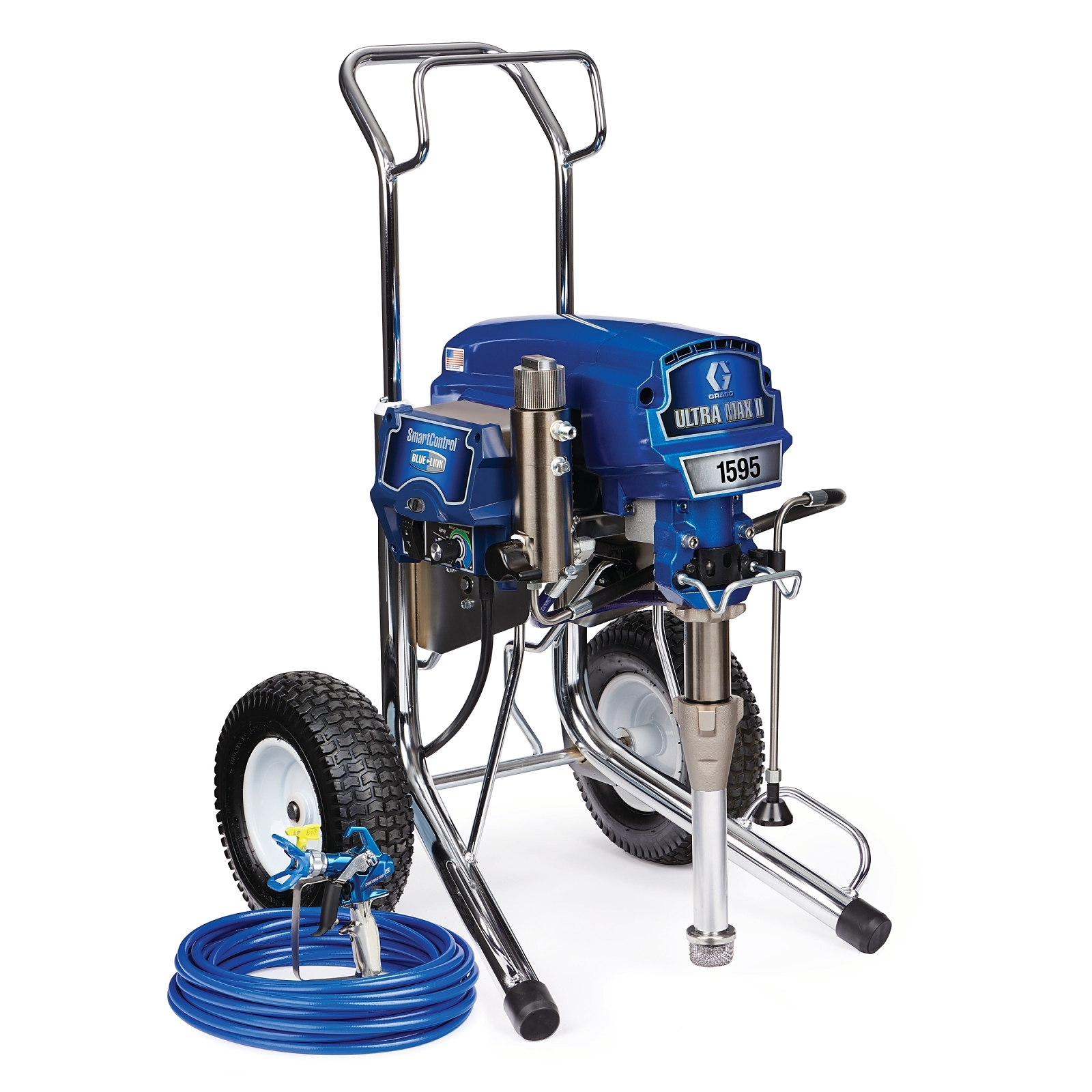

The Ultra Max II 1595 Standard Series is Graco’s largest electric sprayer with a 2.8 hp brushless DC motor to spray up to 1.5 gpm and includes the industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the lightweight Contractor PC gun and more.
| UPC Product | 755652817956 |
|---|---|
| Family Code | FAMULS |
| Country of Origin | US |
| Unit of Measure | EA |
| Height | 38.5 IN | 97.790 CM |
| Length | 26 IN | 66.040 CM |
| Width | 30 IN | 76.200 CM |
| Volume | 17.378 FT3 | 0.492 M3 |
| Shipping Weight | 146.5 LBS | 66.451 KG |
| Engine Size (HP) | 2.8 |
|---|---|
| Fluid Outlet Size (mm) | 6.35 |
| Frame Configuration | Hi-Boy |
| Hose Inlet Diameter (cm) | 0.635 |
| Hose Inlet Diameter (in) | 1/4 |
| Hose Inlet Diameter (mm) | 6.35 |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose |
| Maximum Flow Rate (L/min) | 5.1 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Maximum Tip Size (in) | 0.039 |
| Maximum Tip Size Gun 1 (in) | 0.039 |
| Maximum Working Pressure (psi) | 3300 |
| Maximum Working Pressure (kPa) | 22800 |
| Power Rating (HP) | 2.8 |
| Power Rating (kW) | 2.09 |
| Power Rating (W) | 2088 |
| Maximum Working Pressure (MPa) | 22.8 |
| Pressure Control Type | SmartControl 4.0 |
| Overall Width (mm) | 610 |
| Model | Ultra Max II |
| Maximum Working Pressure (bar) | 228 |
| Overall Height (cm) | 97.8 |
| Overall Height (in) | 38.5 |
| Weight (kg) | 57 |
| Overall Height (mm) | 978 |
| Overall Length (cm) | 66 |
| Overall Width (in) | 24 |
| Overall Length (in) | 26 |
| Series | 1595 |
| Overall Length (mm) | 660 |
| Overall Width (cm) | 61 |
| Frequency (Hz) | 50/60 |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Minimum Generator Power (W) | 5000 |
| Number of Guns | 3 |
| Filter Mesh Size | 60 |
| Maximum Tip Size Gun 2 (in) | 0.029 |
| Volume Per Cycle (cycles/gal) | 110 |
| Amperage (A) | 20 |
| Recommended Annual Usage | Over 200 gallons per week |
| Maximum Tip Size Gun 3 (in) | 0.023 |
| Product Series | Standard |
