Part Number: 16U281
Category: Graco
Availability: Unlimited

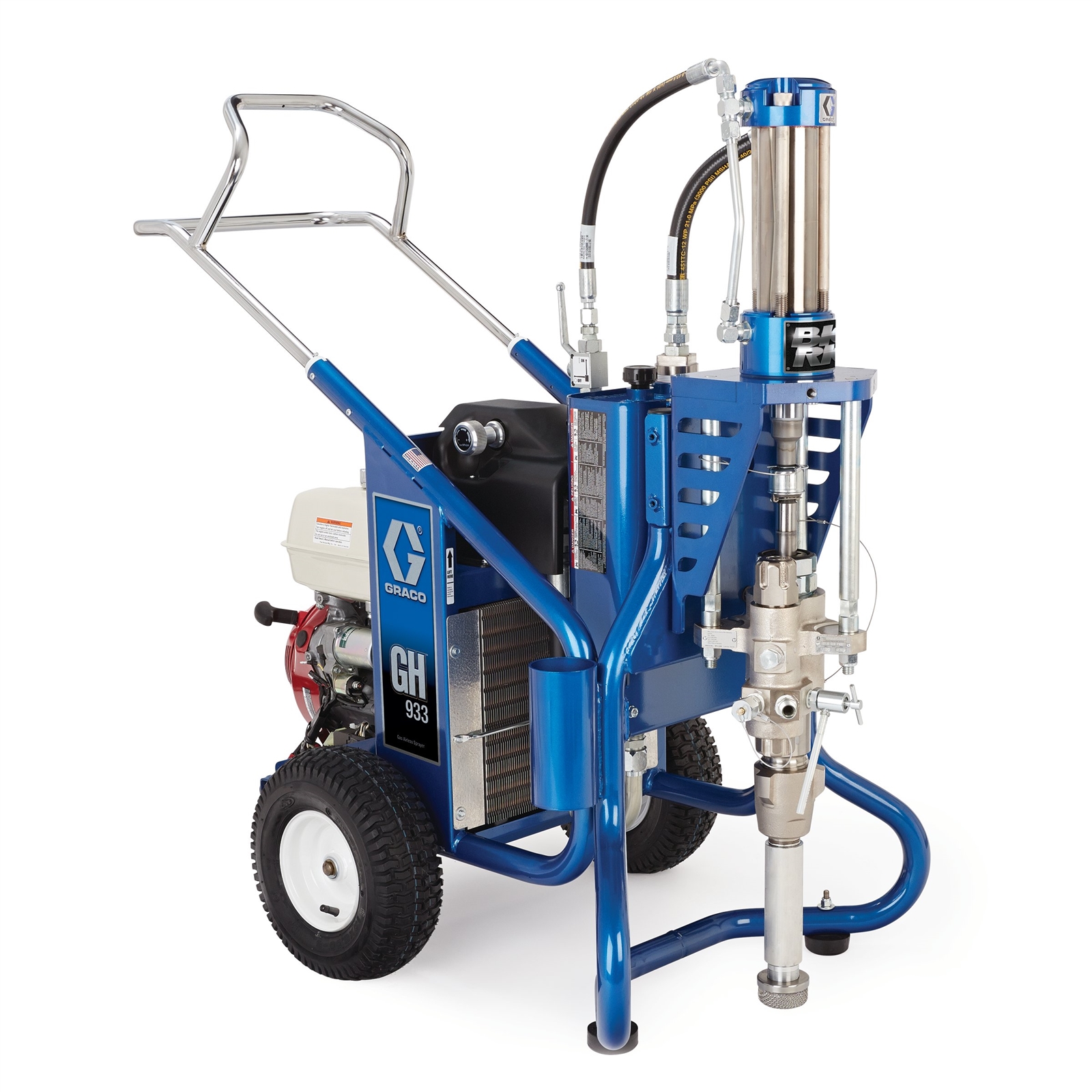

For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 933 can get the job done.
| UPC Product | 633955389854 |
|---|---|
| Family Code | FAMBRG |
| Country of Origin | US |
| Unit of Measure | EA |
| Height | 55.2 IN | 140.208 CM |
| Length | 30 IN | 76.200 CM |
| Width | 45.6 IN | 115.824 CM |
| Volume | 43.7 FT3 | 1.237 M3 |
| Shipping Weight | 476 LBS | 215.910 KG |
| HTS Code (CA) | 8424200000 |
| HTS Code (US) | 8424209000 |
| HTS Code (CA) | 8424200000 |
| Compatible Replacement Pump | 16U755 |
|---|---|
| Engine Brand | Honda |
| Engine Size (HP) | 13 |
| Engine Size (kW) | 9.7 |
| Fluid Inlet Size (in) | 1-1/4 |
| Frame Configuration | Cart |
| Maximum Flow Rate (L/min) | 9.5 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Maximum Tip Size (in) | 0.053 |
| Maximum Tip Size Gun 1 (in) | 0.065 |
| Maximum Working Pressure (psi) | 3300 |
| Maximum Working Pressure (kPa) | 2270 |
| Power Rating (HP) | 13 |
| Power Rating (kW) | 9.7 |
| Overall Width (mm) | 711.2000 |
| Model | GH |
| Maximum Working Pressure (bar) | 227 |
| Overall Height (cm) | 124 |
| Overall Height (in) | 49 |
| Weight (kg) | 181 |
| Overall Height (mm) | 1244.6000 |
| Overall Length (cm) | 109 |
| Overall Width (in) | 28 |
| Overall Length (in) | 43 |
| Series | 933 |
| Overall Length (mm) | 1092.2 |
| Overall Width (cm) | 71 |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Product Type | Single Leg |
| Material Application | Paints, Primers |
| Power Rating (cc) | 390 |
